2007 Heat Siphon Home

2 BUTTONS - SIMPLEDIGITAL FEATURES

ALL DIGITAL MODELS HAVE the HEAT SIPHON DIGITAL PLAYER CONTROLLER BUILT IN offering many additional features and options, a sophisticated problem detection system, a 4 digit LED display and 4 discrete LED lights to provide constant status and feedback. FOUR MODES (POOL, SPA ,AUTO-PIC and EC)



Player in Pool Mode

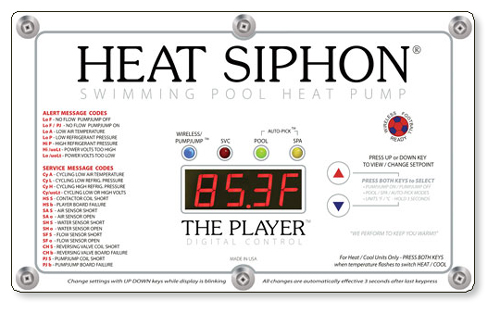

PLAYER DISPLAY

Player in Spa Mode



The DIGITAL DISPLAY - SHOWS WATER TEMPERATURE accurate to +/- 0.1°F and SET-POINT and ERROR CODES and ALERT MESSAGES while 4 STATUS LED’s show current operation modes:

  • Green LED for POOL blinks while heating and is solid on when the pool is at temperature.
  • Yellow LED for SPA works the same.
  • Red LED blinks for alert or error codes and stays on if SERVICE is required.
  • Blue LED is on if the Player's built in PUMPJUMP feature for off cycle heating is active or shows wireless communication is occurring.

DUAL THERMOSTAT for POOL SPA COMBOs - lets you set pool & spa temperature separately and simply select either one by changing the MODE.

AUTOMATION SYSTEM READY - Digital Player has an EC MODE (external control) with screw down terminals built in to allow remote ON/OFF switching via hard-wiring to all 3rd party pool/spa controllers.

WIRELESS READY - DIGITAL PLAYER CONTROL accepts the PLUG-IN DIGITAL PASSPORT (ADD ON) which provides a wireless gateway to the HEAT SIPHON DIGITAL FOOTBALL POOL SPA CONTROL SYSTEM.

analogANALOG FEATURES

ANALOG MODELS are LOWER COST & HAVE A SINGLE KNOB, simple 24 VOLT series control circuit and mechanical thermostat. Many of our customers prefer the simple no nonsense design.

POOL SPA COMBO - Analog single thermostat requires manual setting to pool or spa set-point

AUTOMATION SYSTEM HOOKUP - Simple series analog 24 volt control circuit allows easy hard-wire hookup to an external controller. Just turn the thermostat up all the way to 10 and let the controller turn it on/off.

UPGRADE PATH - DIGITAL PLAYER RETROFIT KIT as an add-on are available to change your ANALOG Heat Siphon to DIGITAL if you later decide to go wireless and will provide ALL PLAYER FEATURES to analog unit

HEAT SIPHON HISTORY - August, 1982 - The first digital watch was only 10 years old when the first Heat Siphon (Analog of course) was made. Digital was in its infancy - just 12 months before on August 12, 1981 the IBM PC was introduced. The first Heat Siphon also predates the Apple Macintosh computer which would be introduced 18 months later in the now famous January 1984 Super Bowl commercial.
